Product Description:

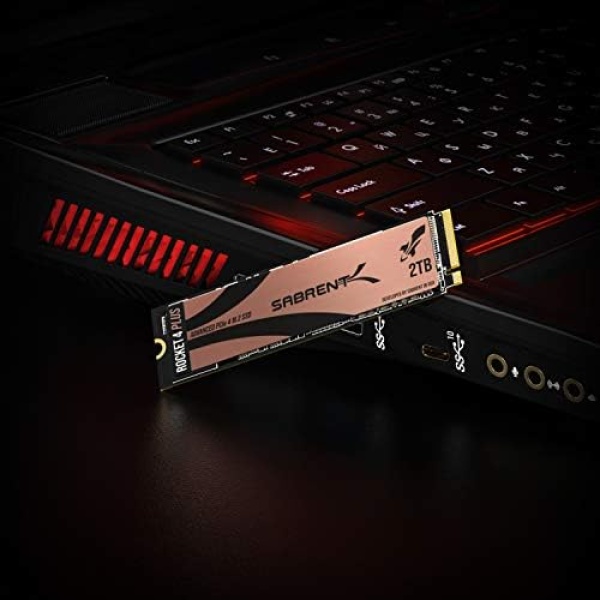

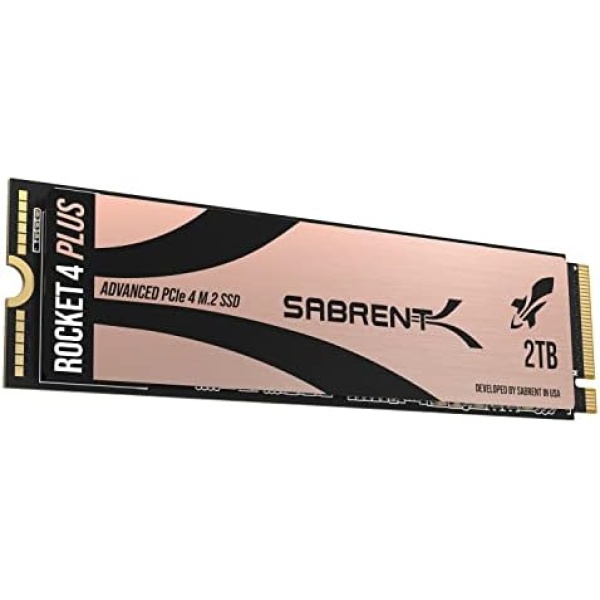

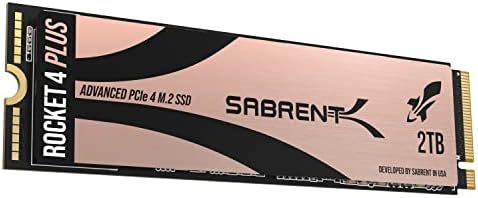

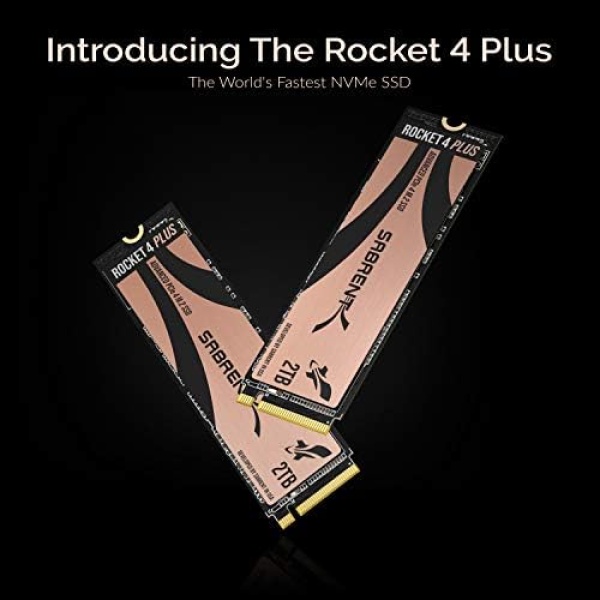

The Sabrent 2TB Rocket 4 PLUS NVMe 4.0 Gen4 PCIe M.2 Internal SSD Extreme Performance Solid State Drive (SB-RKT4P-2TB) delivers all the Advantages of flash disk technology with PCIe Gen4.0 x4 interface.

Based on TLC NAND Flash memory, its performance speeds can reach up to 7100 MB/s (read) and 6600 MB/s (write) when using a PCIe Gen4 Motherboard.

Using a PCIe Gen3 Motherboard Speeds will reach up to 3400 MB/s (read) and 3000 MB/s (write). Power consumption is much lower than traditional Hard Drives, making it the best embedded solution for new systems.

The Sabrent 2TB Rocket 4+ Nvme PCIe 4.0 M.2 2280 Internal SSD was designed using PCIe 4.0 which allows for speeds of up to 7100 MB/s (read) and 6600 MB/s (write), significantly faster than PCIe 3.0.

Note: In order to take advantage of these speeds, a PCIe Gen4 motherboard is REQUIRED. Otherwise, it will be a PCIe gen 3 speed at a max of 3500MB/s.

When installing any NVMe PCIe 4.0 SSD directly onto a PCIe Gen4 Motherboard a Heatsink is required to dissipate the heat generated by the drives Extreme speed levels to avoid thermal throttling and maximize performance.

The Sabrent 2TB Rocket 4+ Nvme PCIe 4.0 M.2 2280 Internal SSD is backward compatible with PCIe 3.0. Using a Gen 3 PCIe motherboard will enable The User to reach speeds of up to 3400 MB/s (read) and 3000 MB/s (write).

Features:

NVMe M.2 PCIe Gen4 x4 Interface.PCIe 4.0 Compliant / NVMe 1.3 Compliant.Power Management Support for APST / ASPM / L1.2.Supports SMART and TRIM commands.Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-ProvisionUpgradeable Firmware.All Sabrent SSDs come with FREE Sabrent Acronis True Image for Sabrent Software for easy Cloning, For more information please visit our website.

Model #
SB-1342-2TB SB-ROCKET-2TB SB-RKTQ-2TB SB-ROCKET-NVMe4-2TB SB-RKTQ4-2TB SB-RKT4P-2TB

Capacity:
2 TB 2 TB 2 TB 2 TB 2 TB 2 TB

Interface:
PCIe Gen. 3 X 4 PCIe Gen. 3 X 4 PCIe Gen. 3 X 4 PCIe Gen. 4 X 4 PCIe Gen. 4 X 4 PCIe Gen. 4 X 4

Max Sequential Read:
2500 (MB/s) 3400 (MB/s) 3200 (MB/s) 5000 (MB/s) 4800 (MB/s) 7100 (MB/s)

Max Sequential Write:
2100 (MB/s) 2700 (MB/s) 2900 (MB/s) 4400 (MB/s) 3600 (MB/s) 6600 (MB/s)

NAND:
TLC TLC QLC TLC QLC TLC

Model:
SB-1342-1TB SB-ROCKET-1TB SB-RKTQ-1TB SB-ROCKET-NVMe4-1TB SB-RKTQ4-1TB SB-RKT4P-1TB

Capacity:
1 TB 1 TB 1 TB 1 TB 1 TB 1 TB

Interface:
PCIe Gen. 3 X 4 PCIe Gen. 3 X 4 PCIe Gen. 3 X 4 PCIe Gen. 4 X 4 PCIe Gen. 4 X 4 PCIe Gen. 4 X 4

Max Sequential Read:
2500 (MB/s) 3400 (MB/s) 3200 (MB/s) 5000 (MB/s) 4700 (MB/s) 7000 (MB/s)

Max Sequential Write:
2100 (MB/s) 3000 (MB/s) 2000 (MB/s) 4400 (MB/s) 1800 (MB/s) 5300 (MB/s)

NAND:
TLC TLC QLC TLC QLC TLC

NVMe M.2 PCIe Gen4 x4 Interface. PCIe 4.0 Compliant / NVMe 1.3 Compliant.
Power Management Support for APST / ASPM / L1.2.
Supports SMART and TRIM commands. Supports ONFi 2.3, ONFi 3.0, ONFi 3.2 and ONFi 4.0 interface.
Advanced Wear Leveling, Bad Block Management, Error Correction Code, and Over-Provision.
All SABRENT SSDs come with FREE SABRENT Acronis True Image for SABRENT Software for easy Cloning. For those who require a specific sector size to clone their existing SSDs: A newly released SABRENT utility enables users to re-format the Rocket drive and choose the sector size of their liking, either 512-bytes or 4K bytes.
